Insulation Inspection: How to Check Wall Insulation in Your Home

Hey folks, Hank here. As a woodworker and DIYer in the windy city of Chicago, I know a thing or two about insulation. Proper insulation is crucial for keeping your home comfortable and energy-efficient. But how do you know if your walls are properly insulated? And what can you do to enhance your home’s insulation without breaking the bank? Follow along as I walk you through the steps for inspecting, assessing, and improving your wall insulation. With some handy DIY tips and advice, you’ll be ready to boost efficiency and start saving money!

What Is Wall Insulation and Why Does It Matter?

Let’s start with the basics – what is wall insulation, and why does it matter? Insulation creates a barrier between the interior and exterior of your home. It’s designed to resist heat flow so that your home stays warm in the winter and cool in the summer. By reducing heat transfer, insulation helps lower your energy bills since your heating and cooling system doesn’t have to work as hard.

There are a few main types of insulation that may be used in walls:

• Fiberglass – This is probably what you picture when you think of insulation. Fiberglass is made of tiny glass fibers and often has a fluffy, cotton candy-like appearance. It’s an affordable option but requires safety precautions during handling.

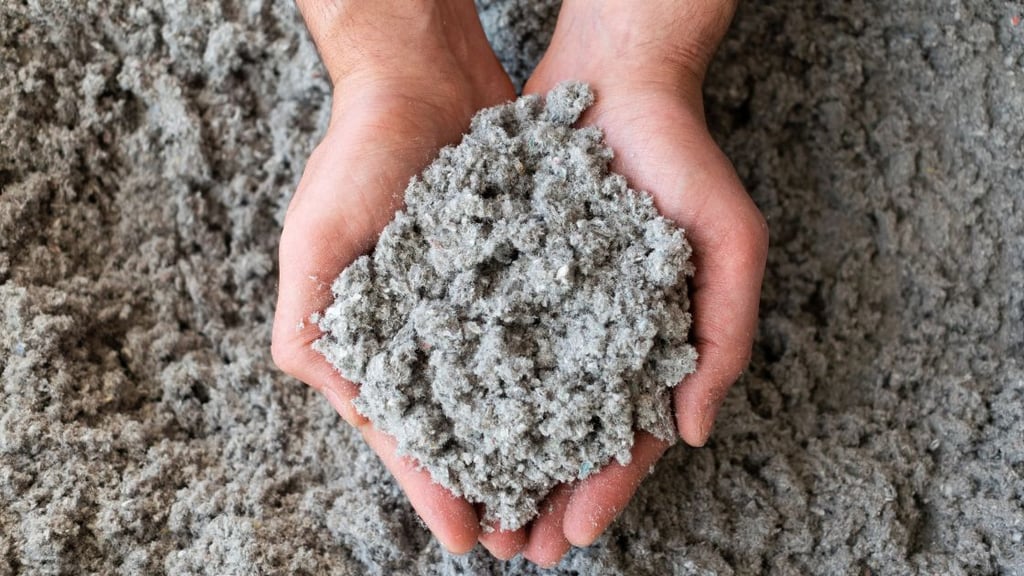

• Cellulose – This is made from recycled materials like newspaper and has a dense, packed-in texture. Cellulose is blown into wall cavities as loose-fill insulation.
• Mineral wool – Formed from molten minerals like basalt or slag, mineral wool has a fiber-like composition similar to fiberglass. It’s fire-resistant and sound-absorbing.

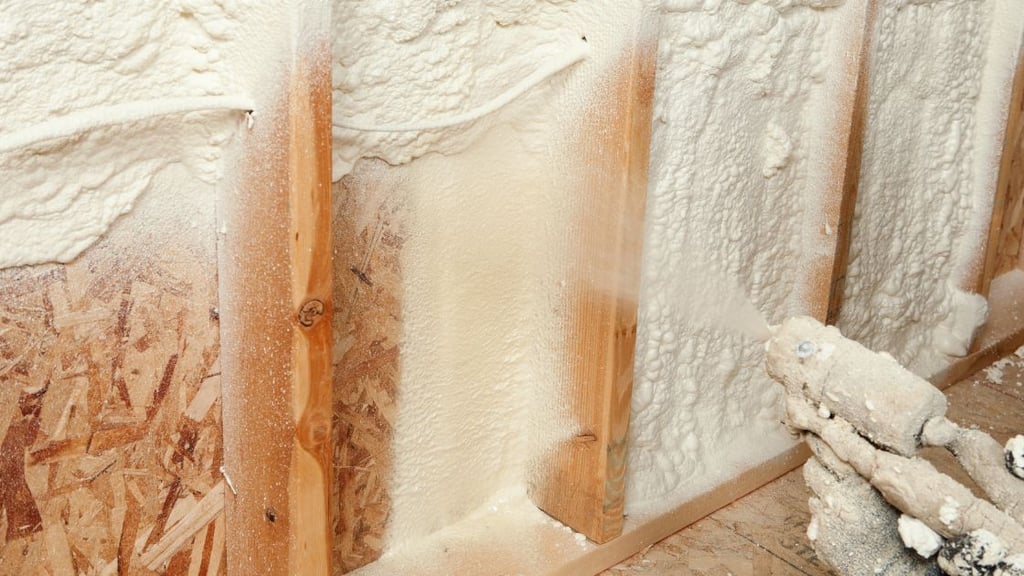

• Foam – Available as rigid foam boards or spray foam, this plastic-based insulation expands to seal cracks and gaps. Closed-cell foam provides a higher R-value per inch compared to other types.

The effectiveness of insulation is measured by its R-value – the higher the R-value, the better the insulating performance. Most exterior walls should have an R-value of at least R-13 to R-23, depending on your climate. I’ll go over the R-value in more detail later on.

Signs Your Home May Need Insulation Improvements

How can you tell if your home needs some insulation TLC? Here are some telltale signs that your wall insulation could be lacking:

1. High Energy Bills

Frequent spikes in your gas or electricity bills, especially during extreme weather, are a red flag for insulation issues. Poor insulation means your HVAC system runs overtime to maintain a comfortable temperature. Boosting your insulation can reduce energy costs and keep bills consistent year-round.

2. Rooms With Varying Temperatures

Do some rooms in your home feel drafty and cold while others overheat? Those temperature inconsistencies likely point to gaps or deficiencies in insulation. Addressing these weak spots can help balance out indoor temperatures.

3. Cold Spots on Walls

Put your hand flat against exterior walls throughout your home – do some feel noticeably colder than others? That’s a clue that insulation may be lacking in those chilly areas. Solid wall insulation should keep interior wall surfaces at room temperature.

4. Frost or Condensation on Windows

If you notice frost, ice, or condensation forming inside windows, heat and moisture are escaping through gaps in insulation. Proper insulation creates an air seal that minimizes condensation issues.

5. Drafts

Are any cold air leaking around outlets, windows, doors, or other cracks? Drafts allow heated or cooled air to escape, making insulation voids immediately apparent. Sealing gaps and adding insulation can make a huge difference.

If you’re experiencing any of these issues, your home needs some insulation improvements. Now, let’s review some DIY methods for checking exactly how well your walls are insulated.

DIY Methods to Test Wall Insulation

While a professional energy audit is the most accurate way to evaluate insulation, there are a few basic tests you can do yourself to get a sense of potential problem areas:

Visual Inspection

The easiest way to peer inside your walls is to remove a switch plate or outlet cover on an exterior wall and shine a flashlight inside. This lets you check for insulation coverage and identify any gaps or settle. Make sure the power is off before removing the covers!

Feel for Cold Spots

Walk around your home and press a hand flat against walls and ceilings. Can you detect areas that feel significantly cooler than others? That likely indicates missing or compressed insulation. Mark any cold regions to come back to later.

Infrared Thermometer

This handy tool detects surface temperatures from a distance using a laser. Scan exterior walls, making note of any spots that show lower temperatures compared to surrounding areas. Temperature variations may pinpoint insulation voids.

Smoke Test

Light a stick of incense or other smoke source and hold it near windows, outlets, plumbing fixtures, electrical wiring, and other areas. Watch for smoke being sucked out, which signifies air leaks. Target those spots for sealing and insulation.

Thermal Imaging Camera

Pricier thermal imaging (IR) cameras visualize heat signatures and pinpoint insulation defects. Some home inspectors use IR cameras to scan for leaks, voids, and areas needing insulation improvements.

These DIY tests can help identify areas to focus your insulation upgrades. But for an extensive energy audit, your best option is hiring a professional.

Benefits of a Professional Home Energy Audit

A professionally conducted home energy audit gives you an accurate picture of where your house is losing heat and how well-insulated it is. While DIY tests provide general guidance, an energy pro will conduct exhaustive diagnostic tests and provide science-backed recommendations.

Comprehensive Testing

Experienced auditors use high-tech equipment like blower door tests, thermal imaging cameras, and industrial insulation testers. These methods provide quantitative data – not just guesstimates.

Whole-House Perspective

Rather than focus on a few trouble spots, a professional audit evaluates the home as a whole system. Auditors check the attic, basement, crawlspaces, walls, windows, and ducts.

Savings Estimates

An auditor runs energy modeling software to estimate the savings from upgrading insulation and sealing air leaks in your unique home. This allows you to calculate cost vs. benefit.

Prioritized Improvements

You’ll receive a customized list of energy upgrades tailored to your home’s needs, with insulation fixes listed in order of importance. This prevents wasted money on ineffective promotions.

Credibility & Expertise

Certified auditors have extensive technical building science training. They adhere to established standards and offer credible recommendations grounded in building physics.

Look for a qualified home energy auditor certified by the Building Performance Institute or the Residential Energy Services Network. Ask your utility company for auditor recommendations, too.

Let’s move on to your options for enhancing wall insulation…

How to Improve Wall Insulation in Existing Homes

If your home energy audit reveals insufficient wall insulation, there are several ways to address the issue:

Add Insulation Material

Extra insulation can often be added to existing walls without significant remodeling. Blown-in cellulose or fiberglass boosts insulation density. Foam or spray foam effectively seals gaps and cracks, too.

Install Removable Insulation Panels

Easily removable and reusable insulation panels made of rigid foam or reflective material can be temporarily installed over wall surfaces. This is a non-destructive option for renters or homeowners on a budget.

Construct Interior Insulated Walls

Framing a new insulated wall inside your exterior walls is intensive but effective. The unique framed wall allows flexibility to use any insulation material that suits your needs.

Replace Insulation Completely

For severely under-insulated walls, removing old insulation and installing new batts or rolls during renovations may be warranted. This also provides an opportunity to address air leaks and moisture issues.

DIY vs. Hiring a Professional

Here are some tips on tackling insulation projects yourself vs. hiring a pro:

• DIY fiberglass batting and foam boards for simple accessible areas like attics
• Seek professional help for existing finished walls, especially blowing in insulation
• Consider the pros and cons of your skill level, safety concerns, and time investment
• Compare multiple contractor estimates and vet credentials thoroughly

Improving insulation may require an initial investment, but the long-term energy savings usually offset the cost over time. Take advantage of any available rebates, tax credits, and financing options, too.

Additional Tips for Maximizing Insulation

Focusing only on walls leaves potential energy-wasting gaps elsewhere. Here are some other areas that commonly need insulation upgrades:

1. Attics

Heat rises, so a poorly insulated attic can undo all your wall insulation efforts. Most lofts should have at least R-30 to R-60 insulation. Add more insulation across the floor and seal any gaps around piping, wiring, and openings.

2. Basements

Uninsulated basements and icy concrete walls can drain heat from your home. Rigid foam boards work well for basement wall insulation. Seal any rim joist spaces, too.

3. Windows & Doors

Even energy-efficient windows and doors become liabilities if the air sealing around them is poor. Ensure weatherstripping fits tightly and caulk any cracks around frames.

4. Ductwork

Sealing and insulating ductwork running through unheated attic spaces, crawlspaces, or garages prevents cooled or heated air from being lost before reaching rooms.

Proper ventilation is also vital – insulation needs airflow to prevent moisture issues like ice dams, mold, and rot. Make sure attics and crawlspaces have adequate ventilation openings.

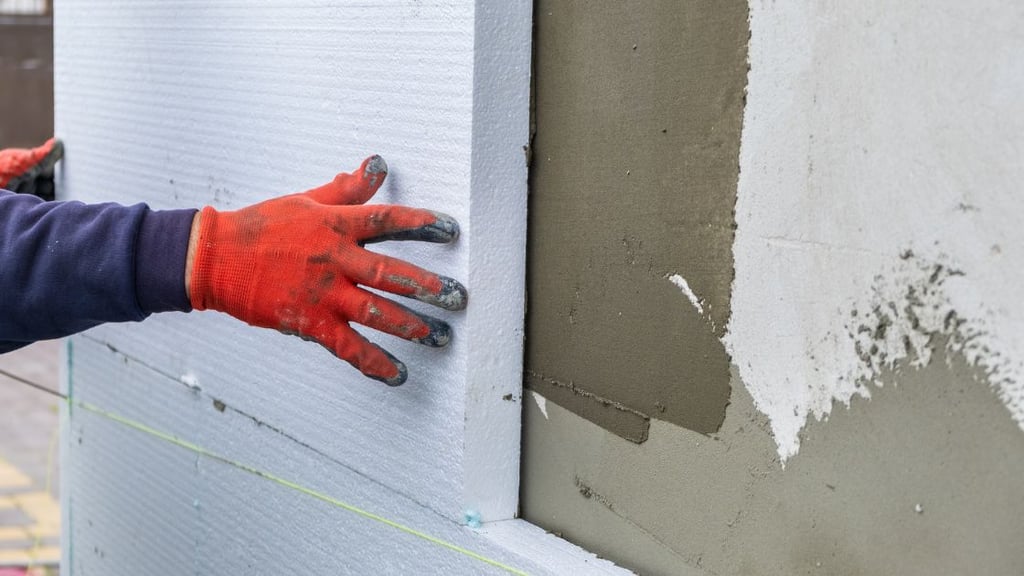

Evaluating Fire Safety and Building Codes

While planning insulation projects, there are some fire safety considerations and building codes to keep in mind:

• Compare insulation product fire ratings – seek materials that are non-combustible and fire-resistant.
• Look up the insulation R-values recommended for your area based on climate zone maps.
• Check requirements for clearance between insulation and heat sources like chimneys and appliance vents.
• Ensure electrical wiring is rated for extended contact with insulation materials.
• Note aging knob and tube wiring – insulation must keep a safe distance from this type of obsolete wiring.
• Verify that insulation meets building codes for density, protective barriers, and installation methods.

Your local building department and insulation contractors can guide you in meeting safety and code requirements. I always advise running plans by the pros to avoid flouting any regulations.

Tracking Down Incentives for Insulation

If you’ve decided to upgrade insulation, look into potential incentives and financing options to offset costs:

• Federal tax credits – Energy efficiency home improvements, including insulation, may qualify for tax credits of up to $500.
• Utility rebates – Many utility companies offer rebates for adding insulation. Check your provider’s website.
• State incentives – Some states offer additional insulation incentives, grants, or low-interest loans.
• Manufacturer rebates – Insulation material suppliers often provide rebates. Look for coupons on product packaging, too.
• DIY installation – Doing the work yourself can save on labor costs, but evaluate your skills first.
• Payment Plans – Many contractors offer payment plans or financing options, allowing you to pay over time.

Every little bit helps when trying to budget for efficiency upgrades. Remember to submit any rebate or tax credit paperwork after completing insulation projects.

Maximizing Savings Through Insulation

Insulation is all about maximizing long-term cost savings and home comfort. Here are a few factors to keep in mind:

Energy Bill Savings

The main financial benefit of insulation comes from lowering energy bills. Better insulation means your heating and cooling systems don’t overwork to maintain temperature. Investing a little now can mean significant lifetime savings.

Home Value Increase

Enhanced insulation and air sealing can add to your home’s overall value. Increasingly, home buyers look closely at energy efficiency, so improved insulation gives you a competitive edge.

Environmental Impact

With better insulation, your home requires less fuel for heating and electricity for air conditioning. By conserving energy, you reduce reliance on fossil fuels and lower your carbon footprint.

Return on Investment

Will the energy savings be worth the upfront cost? Compare the price of insulation upgrades to the estimated annual savings on utilities provided by your energy auditor. The Department of Energy says well-planned upgrades can yield a 100-200% return on investment!

Closing Thoughts

Checking and upgrading insulation may seem complicated, but it doesn’t have to be with the correct information and strategies. Start by looking for signs of insufficient insulation, like high energy bills or cold interior walls. Simple DIY tests can help gauge your insulation needs before seeking professional energy audits and repairs. And be sure to take advantage of incentives and rebates along the way – saving energy should also save you money.

With some handy DIY tricks, strategic upgrades, and professional help as needed, you can tackle insulation issues efficiently. Your walls will better resist heat flow, keeping rooms comfortable while reducing energy waste. And you can pat yourself on the back for increasing your home’s efficiency and value.
